Product
Specifications
▤
Hardware specification
Technical data
17 PARAMETERS
FLIGHT CONTROLLER SOFTWARE
BETAFLIGHT, ARDUPILOT
MCU
STM32H743
UART
7
I2C INTERFACE
2
CAN INTERFACE
1
OSD
AT7456
SERVO CONTROL
4
MOTOR CONTROL
8
GPIO INTERFACE
3
DIGITAL VIDEO INTERFACE
1
GNNS SYSTEM
GPS, GLONASS
INPUT VOLTAGE
3-8S
GYROSCOPE
ICM42688-P
BAROMETR
BMP390
BEC POWER
5V/3A; 10V/3A
FLASH MEMORY
16 MB
SD CARD
YES

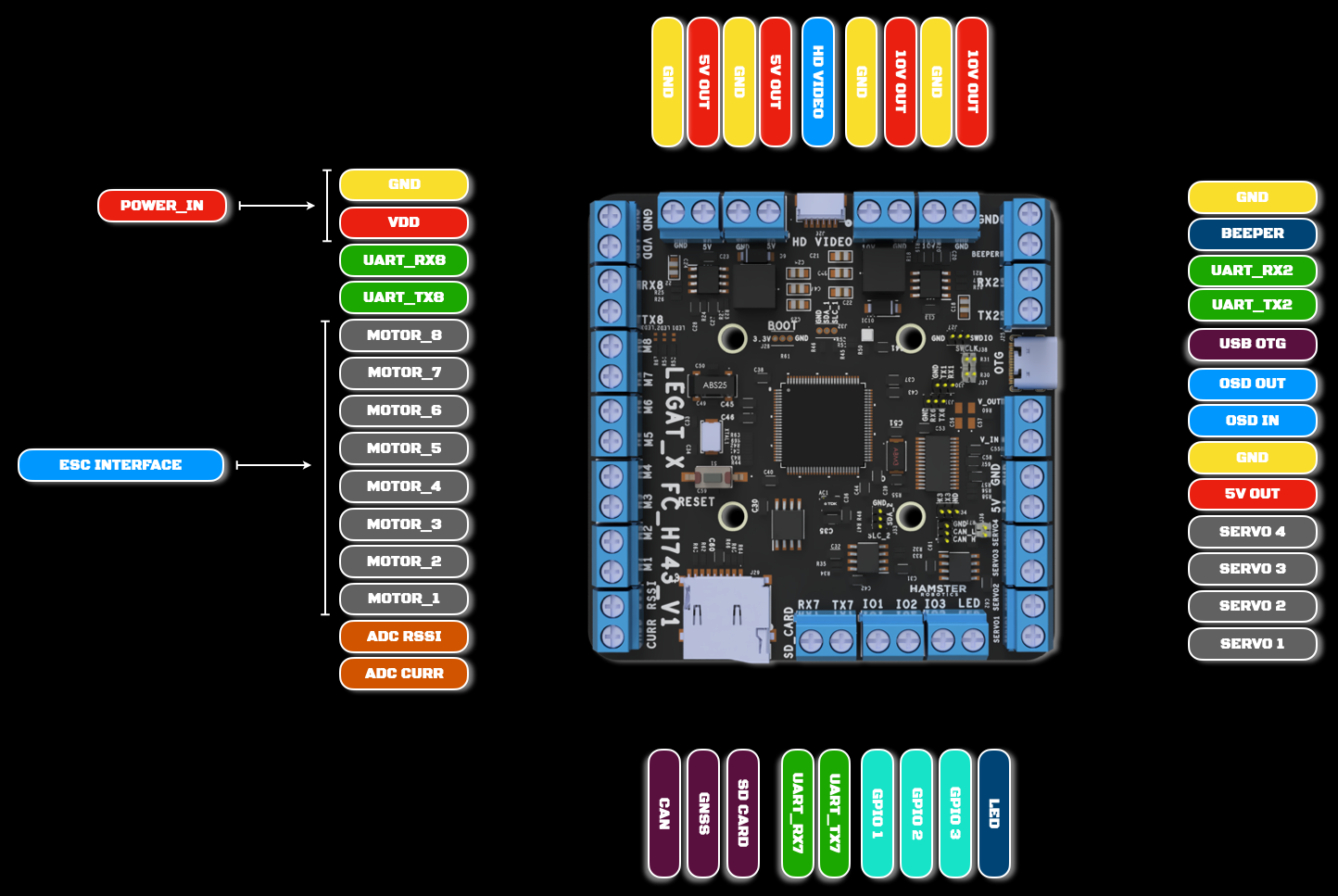

Pinout
Connection / Wiring
WIRING DIAGRAM
Firmware
1.0.0
LATEST
Stable · 2026-08-19
Download
Stable · 2026-08-19
SHA-256: e96695eeb5b82e1258f1b66024fa03cc29220d6b39fd45ba19943b35a0096bf3
Presentation
Product presentation will be published here.
